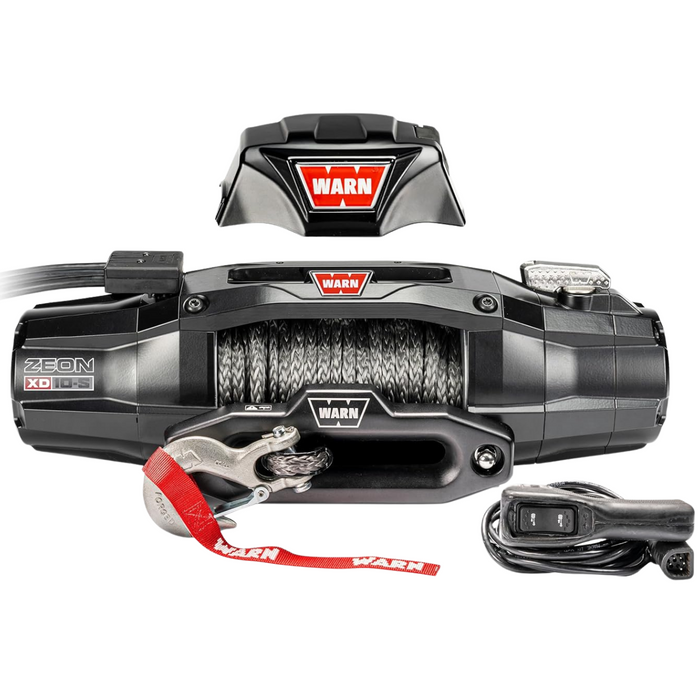

ZEON XD 10-S - 110010 | Warn ZEON XD. The name to trust when it's all on the line.®
The ZEON XD 10-S winch has a pull capacity of 10,000 pounds. It comes with 100’ feet of 3/8” Spydura synthetic rope and the HUB receiver for 100’+ range of wireless control, when paired with the WARN HUB app.
Please Note: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle.
Overview:
Redesigned and retooled from the ground up for ultimate performance and durability— ZEON XD is there for the times it just has to work, in all conditions. And with the industry’s best warranty, fastest line-speed, and most robust waterproof sealing, ZEON XD is the ultra-reliable recovery tool you can count on when you need it most.
- Engineered, tested, and assembled in Clackamas, Oregon, USA.
- New high-performance, high-efficiency motor and geartrain delivers blazing fast no-load line speeds of up to 40 ft/min— the fastest in its class.
- Reliable waterproof construction features o-ring rubber sealing. The entire winch is IP68K submersion and IP69K high pressure spray rated.
- Includes a durable waterproof corded remote with 12’ lead, and the HUB receiver for 100’+ range of wireless control, when paired with the WARN HUB app
- Upgraded, corrosion resistant black fasteners and new, UV resistant bus bar covers meet the highest OEM-grade specifications.
- Full metal armor protects components from impact and damage.
- WARN Spydura synthetic rope is strong, lightweight, easy-to-handle, with heat-resistant inner wraps and abrasion sleeve.
- Upgraded black aluminum fairlead is made of forged 6061-T6 billet aluminum, giving superior corrosion, impact, salt, weather, and UV-resistance for long-lasting good looks.
- Albright contactor control and bus bars for the ultimate in electrical reliability and efficiency.
- Industry-leading warranty: Limited lifetime mechanical, seven year electrical—all backed by a global service network.
Specifications:
| Rated Line Pull (Single Line) | 10,000lbs (4536 kg) |
| No Load Line Speed | 40 ft/min (12.19m/min) |
| Rated Load Line Speed | 5 ft/min (1.52m/min) |
| No Load Motor Current | 64 Amps |
| Rated load motor current | 458 Amps |
| Motor | 12V DC, series wound (exclusive WARN high-performance design) |
| Zeon Electrical controls | Contactor |
| Wiring | Automotive OE-grade buss bars |
| Zeon Corrosion Resistance | 408 hour salt spray |
| Zeon Ingress Protection | IP68 submersion and IP69K spray testing (entire unit) |
| Remote Control | Corded remote with 12’ (3.7m) lead, plus HUB Wireless Receiver |
| Drum diameter/Length | 3.15”/9.0” (80mm/229mm) |
| Geartrain | 3-stage planetary |
| Zeon Gear Ratio | 141:1 |
| Zeon Clutch (freespooling) | Rotating ring gear with stainless steel clutch lever. Manual lever operation. |
| Brake | Automatic, six segment mechanical cone |
| Rope | 3/8” x 100’ (9.52mm x 30m) Spydura synthetic |
| Fairlead | Black anodized, forged aluminum hawse |
| Recommended Battery | 650 CCA minimum for winching |
| Battery leads | 2 gauge, 72” (1.83m) |
| Zeon Finish | Satin-black powder coat |
| Final point of assembly | Warn facility in Clackamas, Oregon, USA |
| Warranty | Limited lifetime mechanical, 7 years electrical |
| Weight | 85lbs (in box) |
Details
By Application: |
Trucks, Jeeps and SUVs Winches |
By Series: |
Zeon XD Winches |
MPN: |
110010 |
Fitment: |
Universal |
Type: |
Electric Winch |
Make: |
Universal |
Model: |
Universal |
