ZEON XP 10-S - 110100 | Warn ZEON XP. The name to trust when it's all on the line.®
The ZEON XP 10-S has 10,000 lb. capacity—the ideal combination of power and fast line speed. A great choice for lighter 1/2-ton pick-ups, Jeeps, and SUVs. It comes with with 100’ of 3/8” Spydura synthetic rope.
Please Note: This product requires a compatible bumper or mounting plate to be properly mounted to your vehicle.
Overview:

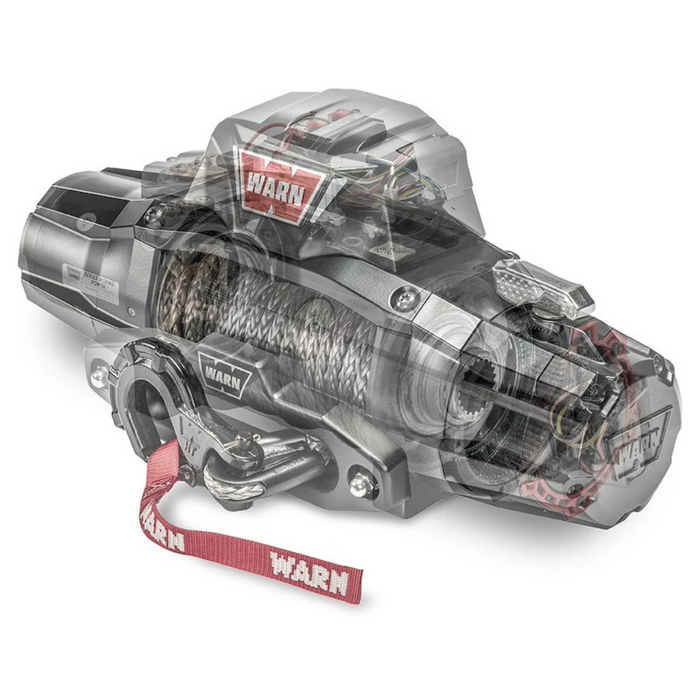

The all-new ZEON XP is Warn’s top of the line — an ultimate performance pulling machine with unmatched control. It’s the reliable, American assembled winch you can always count on to pull you through.
- Engineered, tested, and assembled in Clackamas, Oregon, USA.
OEM-grade bus bars provide highly efficient electrical connections, eliminating the exposed, inefficient wiring. - ZEON XP is built on the same platform as ZEON XD and shares the high efficiency motor and geartrain, to deliver a blazing fast no-load line speed of up to 40 ft/min—the fastest in its class.
- Improved corrosion resistant black fasteners along with improved, UV resistant bussbar covers meet the highest OEM specifications.
- Made of forged aluminum, giving superior corrosion, impact, salt, weather, and UV-resistance for long-lasting good looks.
- At the heart of the control pack is a built in HUB receiver and sensors that continuously monitor winch load, temperature, and battery voltage.
- Built-in remote operated clutch is operated with the push of button. A manual clutch lever offers users a mechanical override.
- A large drum diameter reduces rope wear, and the aluminum material helps to dissipate brake heat. The patented rope anchor system is the strongest on the market, and allows for easy rope installation.
- The highest level of protection, featuring OEM-grade O-ring rubber gaskets. This new sealing delivers a longer service life and meets the most stringent IP68 submersion and IP69K spray testing.
Specifications:
| Rated Line Pull (Single Line) | 10,000lbs (4536 kg) |
| No Load Line Speed | 40 ft/min (12.19m/min) |
| Rated Load Line Speed | 5 ft/min (1.52m/min) |
| No Load Motor Current | 64 Amps |
| Rated load motor current | 458 Amps |
| Motor | 12V DC, series wound (exclusive WARN high-performance design) |
| Zeon Electrical controls | Contactor |
| Wiring | Automotive OE-grade buss bars |
| Zeon Corrosion Resistance | 408 hour salt spray |
| Zeon Ingress Protection | IP68 submersion and IP69K spray testing (entire unit) |
| Remote Control | Corded remote with LED feedback light, plus bluetooth enabled HUB Wireless Receiver integrated into the control pack |
| Drum diameter/Length | 3.15”/9.0” (80mm/229mm) |
| Geartrain | 3-stage planetary |
| Zeon Gear Ratio | 141:1 |
| Zeon Clutch (freespooling) | Rotating ring gear with stainless steel clutch lever. Both manual and remote activated operation. |
| Brake | Automatic, six segment mechanical cone |
| Rope | 3/8” x 100’ (9.52mm x 30m) Spydura synthetic |
| Fairlead | Black anodized, forged aluminum hawse |
| Recommended Battery | 650 CCA minimum for winching |
| Battery leads | 2 gauge, 72” (1.83m) |
| Zeon Finish | Satin-black powder coat |
| Final point of assembly | Warn facility in Clackamas, Oregon, USA |
| Warranty | Limited lifetime mechanical, 7 years electrical |
| Weight | 85lbs (in box) |
Details
By Application: |
Trucks, Jeeps and SUVs Winches |
By Series: |
Zeon XP Winches |
MPN: |
110100 |
Fitment: |
Universal |
Type: |
Electric Winch |
Make: |
Universal |
Model: |
Universal |
