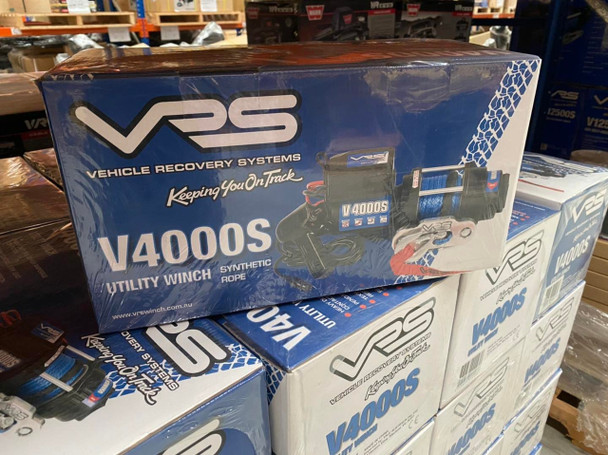

VRS V4000S Utility Electric Winch 12V 4000lb with Synthetic Rope 4WD 4x4 Offroad Recovery Truck

0 review Write a Review
The VRS 4000LBS Utility Winch is a compact sized winch to help you with those heavy jobs around the home or on the work site. Easily install on your trailer, ut…
SKU: UF-VRS-00005
UPC: 9345639000238
Condition: New
Shipping: $20.00 (Fixed Shipping Cost)
Fitment: Universal
Make: Universal
Model: Universal
Type: Electric Winch
Price: $469.95
Hurry up! Current stock:

VRS V4000S Utility Electric Winch 12V 4000lb with Synthetic Rope 4WD 4x4 Offroad Recovery Truck

Price: $469.95

The VRS 4000LBS Utility Winch is a compact sized winch to help you with those heavy jobs around the home or on the work site. Easily install on your trailer, ute, workshop or more for a hassle free winching solution.

  • Heavy duty sealed high amperage contactor
  • Pendant control
  • Textured UV and corrosion resistant finish
  • Sealed to resist water penetration
  • Mechanical braking system
  • Designed in Australia for the World

SPECIFICATIONS

Line Pull 4,000lb/ 1,818kgs
Motor 12V Permanent magnet 1.6hp/1.2kw DC12V
Gear Train 3 stage planetary gears
Gear Ratio 198: 1
Freespool Sliding ring gear
Brake Automatic, in the drum
Battery Recommended 650 CCA minimum for winching
Synthetic Rope Size 6mm x 10m
Drum Size 50mm x 76.5mm
Mounting Bolt Pattern 124mm x 76mm
Dimensions 334mm x 114mm x 120mm
Net Weight 8.6kgs (19lbs)

LINE PULL AND ROPE CAPACITY

Layer of wire rope Line Pull kg / lb Total Rope on the Drum m/ft
1st Layer 1,818 / 4,000 2 / 6.6
2nd Layer 1,460 / 3,225 4.3 / 14.1
3rd Layer 1,225 / 2,700 7.2 / 23.6
4th Layer 1,055 / 2,325 10 / 39



LINE SPEED AND AMP. DRAW*

Line Pull kg/lb Line Speed mpm/fpm Amp. Draw 12V
No Load 4.9 / 16.0 17
454 / 1,000 3.2 / 10.5 70
907 / 2,000 2.8 / 9.2 105
1,360 / 3,000 2.2 / 7.2 135
1,818 / 4,000 1.5 / 4.9 180

* 1ST LAYER OF ROPE ON THE DRUM

STANDARD ACCESSORIES

  • Detachable Contactor Pack
  • Remote pendant control
  • Synthetic Rope with Hook
  • Hawse fairlead
  • Handsaver strap
