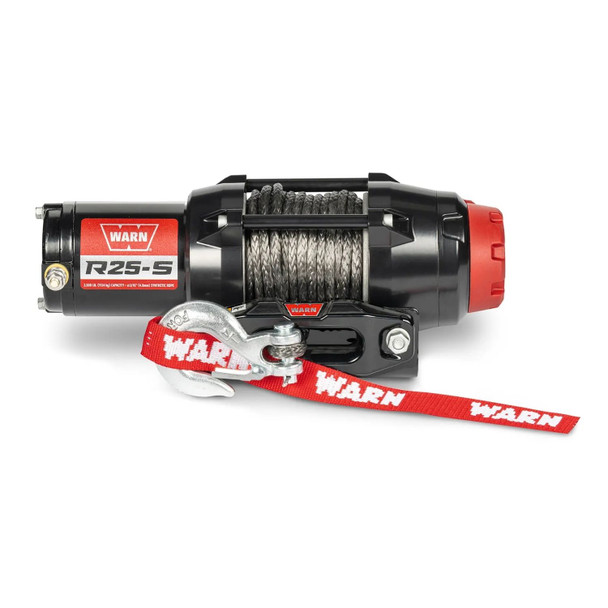

WARN R-Series Powersports R25-S Winch PART NUMBER: 110020
This powersports winch is equipped with 50-ft. of 3/16-in. synthetic rope, a hawse fairlead, and a handlebar-mounted rocker control switch. With a 2,500 lb. capacity, this winch is great for quads and smaller ATVs. With the WARN R-Series, you simply get more. More waterproofing, more capacity, more metal, and a more comprehensive warranty.
WARN R-Series Powersports Winches offer reliable performance from a name you can trust. With capacities ranging from 2,500 lbs. to 6,000 lbs.—our highest capacity powersports winch ever—we offer something for every ATV, UTV, or even something as small as a pickup or SUV. R-Series has the features you want, the power you need, and a price that won’t leave you stuck looking at lesser brands. Engineered in-house at our Oregon headquarters, these winches are built to Warn’s specs and put through rigorous testing and quality control measures. All-metal gear trains, IP67 waterproofing, a compact design, and steel or synthetic rope make R-Series the top standard-duty powersports winches on the market. After all, if they’re going to wear a red WARN W, they must be better than good, they need to be great.
- Engineered in Oregon, built to WARN specs, and thoroughly tested for quality control
- 2,500 lb. capacity is perfect for ATVs
- Highly efficient and strong all-metal three-stage planetary gear train is built to last
- The compact design is easy to install
- Reliable automatic load-holding brake for excellent control
- Superior 5-year mechanical warranty, 3-year electrical warranty, supported by a US-based customer service team
- IP67 waterproofing keeps the water, dirt, and debris out and reliability in
- Includes 50-ft. of lightweight, easy-to-handle 3/16-in. synthetic rope and a hawse fairlead
- Handlebar-mounted rocker control switch is simple to operate
Specifications:
• Brake Activation: Automatic
• Brake Type: Automatic
• Cable Diameter: 0.476 cm
• Cable Length: 15.2 m
• Cable Material: Synthetic Rope
• D Shackle Included: No
• Fairlead Type: Hawse
• Free Spooling: Yes
• Gearing: Differential Planetary
• Length: 31.5 cm
• Maximum Height: 11.4 cm
• Maximum Width: 10.2 cm
• Motor Type: Permanent Magnet
• Motor Voltage: 12V
• Mounting Bolt Pattern Length: 12.37 cm
• Mounting Bolt Pattern Width: 7.62 cm
• Mounting Hole Quantity: 4
• Power Out: Yes
• Rated Line Pull: 1,134 kg
• Remote Included: No
• Remote Type: Sold Separately
• Type: Electric
• Voltage: 12V
Details
Fitment: |
Universal |
Type: |
Electric Winch |
Make: |
Universal |
Model: |
Universal |
